[안드로이드] 카카오맵 API 코드 기록

프로그래밍막내 2020. 1. 12. 16:50
300x250
SMALL







[2021-04-18 업데이트]





코드 물어보시는 분들이 많아 프로젝트 공유합니다.

https://github.com/mtjin/LandKorea_AndroidApp



mtjin/LandKorea_AndroidApp

잡코리아 땅버전앱. Contribute to mtjin/LandKorea_AndroidApp development by creating an account on GitHub.

github.com





참고사이트: 저는 카카오맵 공식문서에 대해 자세한 설명을 담아서 포스팅하지 않고 코드위주로 기록해놨습니다. 카카오맵 API 문서는 매우 잘되어있으므로 공식문서를 보고 하는것을 추천드립니다. 하다가 안되는게 있으면 이 포스팅의 코드기록을 참고하시거나 궁금사항을 여쭤보시면 감사하겠습니다 :)    (아마 지도 혹은 기본 좌표 세팅, 카카오맵 콜백함수, Rest API와의 Retrofit2 통신, 커스텀 좌표 등을 참고하실거라 예상합니다.)





카카오맵 기본 세팅 가이드, 기본 기능 제공

http://apis.map.kakao.com/android/guide/





카카오맵 함수 API 문서

http://apis.map.kakao.com/android/documentation/

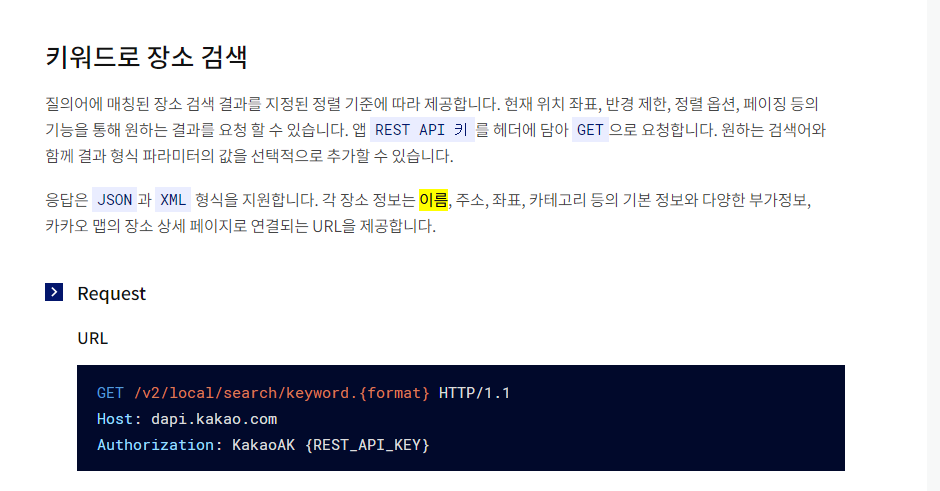

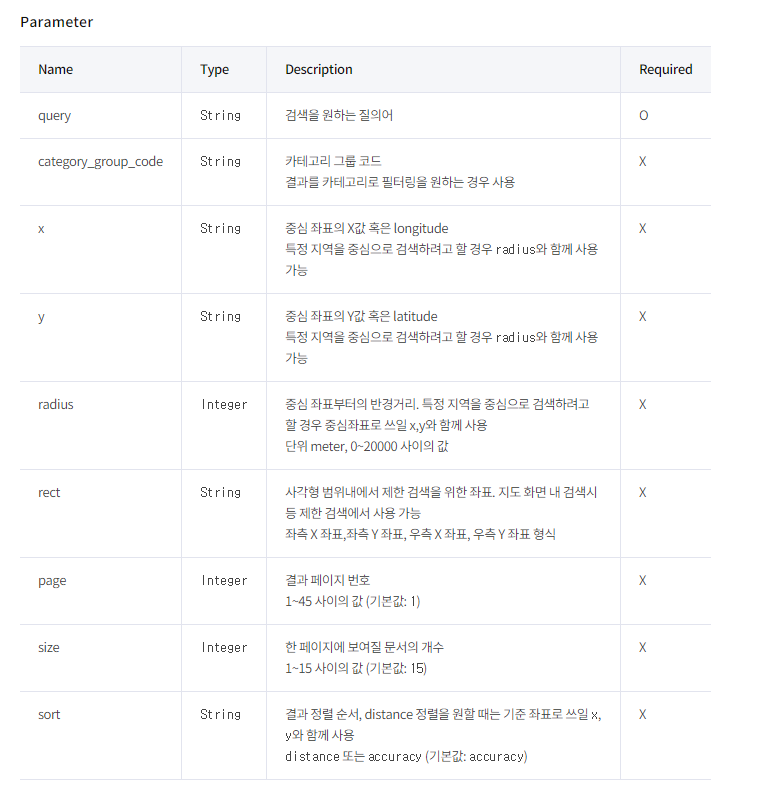

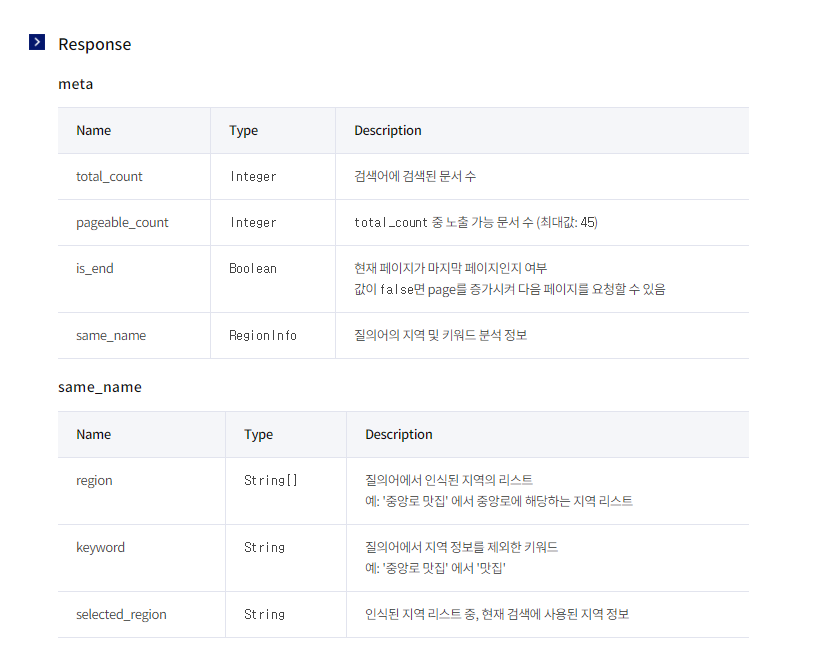

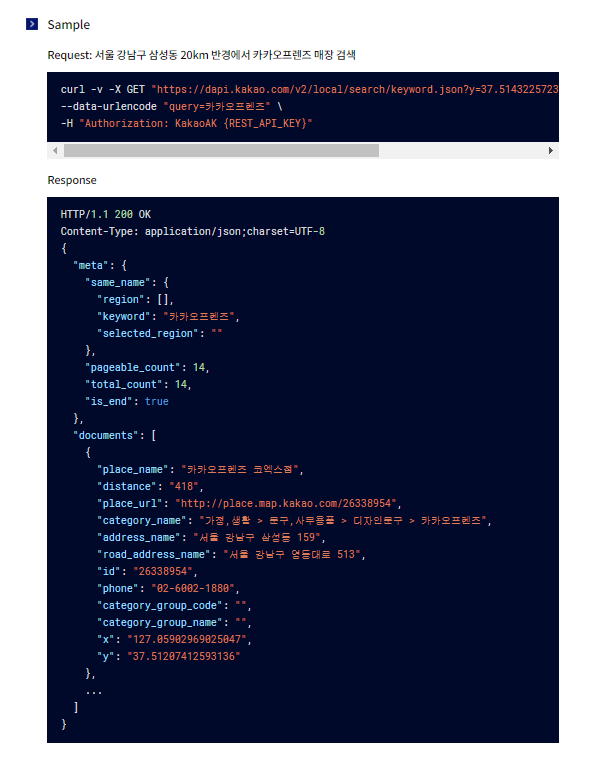

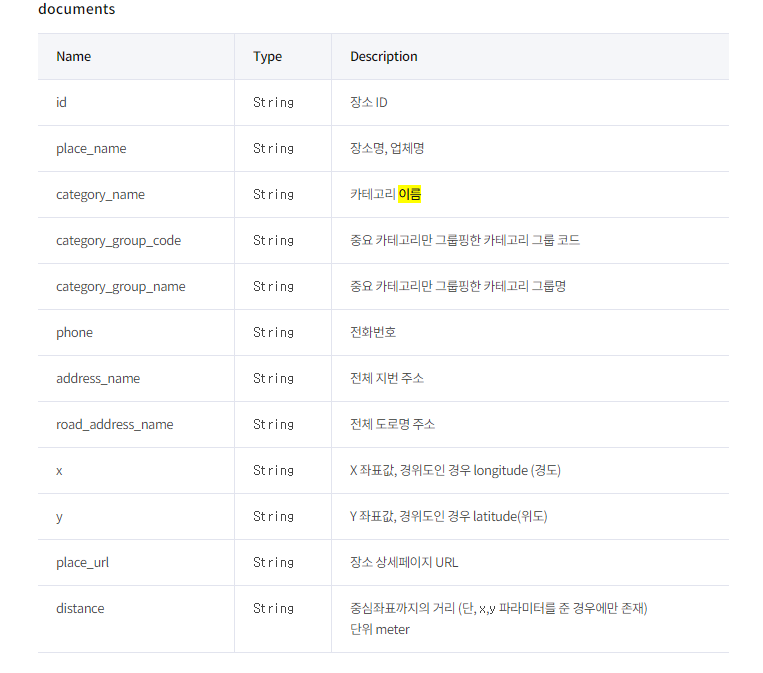

카카오맵 REST API 문서 (단순 SDK 이용이 아닌 Retrofit2 통신이 필요한 부분들 ex. 장소 카테고리, 이름, 주소로 검색 )

developers.kakao.com/docs/latest/ko/local/dev-guide



Kakao Developers

카카오 API를 활용하여 다양한 어플리케이션을 개발해보세요. 카카오 로그인, 메시지 보내기, 친구 API, 인공지능 API 등을 제공합니다.

developers.kakao.com



카카오맵 API 사용코드입니다.



[참고 아닌 핑계?]

기능만 구현되게 급하게 짜서 코드가 많이 더럽습니다.  ㅠㅠ 그리고 MVC와 다중 통신을 ApiInterface로 콜백의 연속으로 구현했기에 더러워염 ㅠㅠ



하지만 저는 알아볼 수는 있어서 나중에 또 카카오맵 API를 사용했을 때 기억을 상기시킬려고 코드를 올립니다.

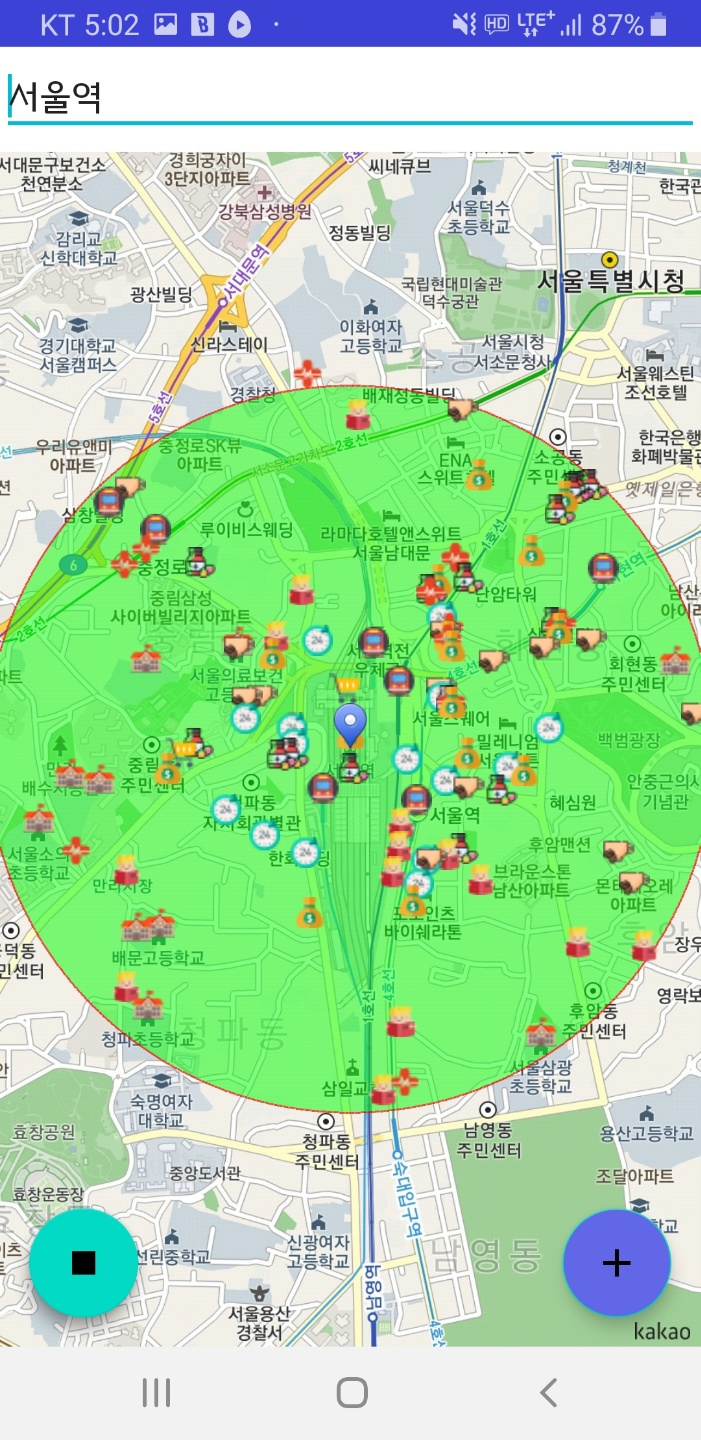

길찾기, 카테고리검색, 특정 좌표에서 1km 내의 주변환경 검색, 장소검색, 네비게이션, 마커, circle, pollItem, tracking mode카카오맵API 에서 제공하는 대부분의 기능을 담았습니다.



검색같은 경우는 카카오톡 Local REST API와 통신을 해야하므로 retrofit2를 사용하였다.

(나중에 시간이 되면 코드를 정리해서 올리도록 하겠습니다.)







[MapActivity]

package com.mtjin.mapogreen.activities;

import androidx.appcompat.app.AppCompatActivity;
import androidx.recyclerview.widget.DividerItemDecoration;
import androidx.recyclerview.widget.LinearLayoutManager;
import androidx.recyclerview.widget.RecyclerView;

import android.content.DialogInterface;
import android.content.Intent;
import android.content.pm.ActivityInfo;
import android.graphics.Color;
import android.net.Uri;
import android.os.Bundle;
import android.text.Editable;
import android.text.TextWatcher;
import android.util.Log;
import android.view.View;
import android.view.ViewGroup;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.EditText;
import android.widget.RelativeLayout;
import android.widget.Toast;

import com.crowdfire.cfalertdialog.CFAlertDialog;
import com.google.android.material.floatingactionbutton.FloatingActionButton;
import com.mtjin.mapogreen.R;
import com.mtjin.mapogreen.adapter.LocationAdapter;
import com.mtjin.mapogreen.api.ApiClient;
import com.mtjin.mapogreen.api.ApiInterface;
import com.mtjin.mapogreen.model.category_search.Document;
import com.mtjin.mapogreen.model.category_search.CategoryResult;
import com.mtjin.mapogreen.utils.BusProvider;
import com.mtjin.mapogreen.utils.IntentKey;
import com.shashank.sony.fancytoastlib.FancyToast;
import com.squareup.otto.Bus;
import com.squareup.otto.Subscribe;


import net.daum.mf.map.api.MapCircle;
import net.daum.mf.map.api.MapPOIItem;
import net.daum.mf.map.api.MapPoint;
import net.daum.mf.map.api.MapView;

import org.jetbrains.annotations.NotNull;

import java.util.ArrayList;

import retrofit2.Call;
import retrofit2.Callback;
import retrofit2.Response;


public class MapActivity extends AppCompatActivity implements MapView.MapViewEventListener, MapView.POIItemEventListener, MapView.OpenAPIKeyAuthenticationResultListener, View.OnClickListener, MapView.CurrentLocationEventListener {
    final static String TAG = "MapTAG";
    //xml
    MapView mMapView;
    ViewGroup mMapViewContainer;
    EditText mSearchEdit;
    private Animation fab_open, fab_close;
    private Boolean isFabOpen = false;
    private FloatingActionButton fab, fab1, fab2, fab3, searchDetailFab, stopTrackingFab;
    RelativeLayout mLoaderLayout;
    RecyclerView recyclerView;

    //value
    MapPoint currentMapPoint;
    private double mCurrentLng; //Long = X, Lat = Yㅌ
    private double mCurrentLat;
    private double mSearchLng = -1;
    private double mSearchLat = -1;
    private String mSearchName;
    boolean isTrackingMode = false; //트래킹 모드인지 (3번째 버튼 현재위치 추적 눌렀을 경우 true되고 stop 버튼 누르면 false로 된다)
    Bus bus = BusProvider.getInstance();

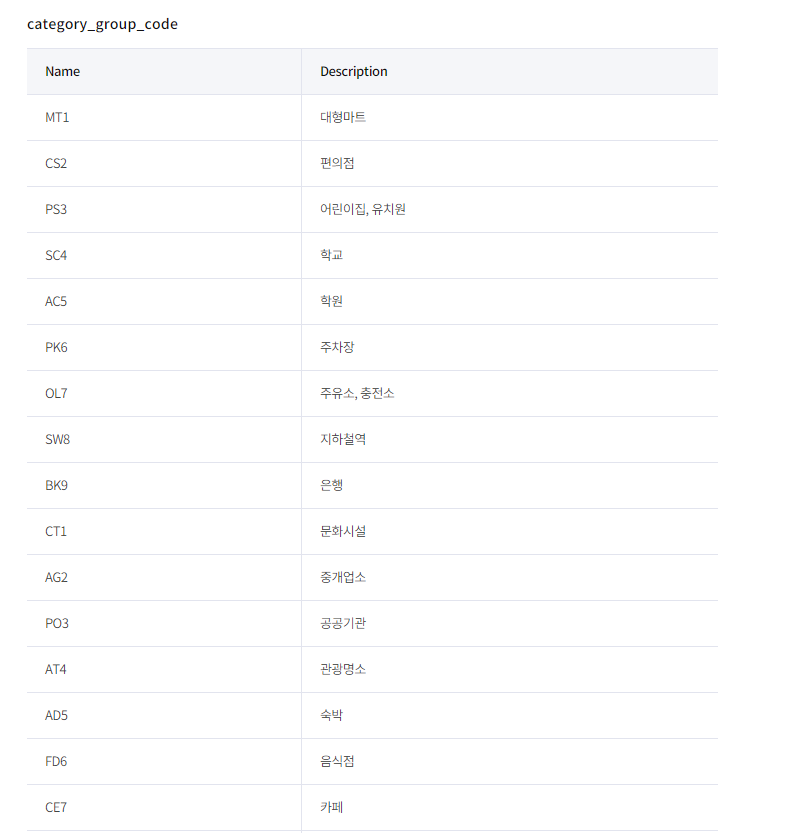

    ArrayList<Document> bigMartList = new ArrayList<>(); //대형마트 MT1
    ArrayList<Document> gs24List = new ArrayList<>(); //편의점 CS2
    ArrayList<Document> schoolList = new ArrayList<>(); //학교 SC4
    ArrayList<Document> academyList = new ArrayList<>(); //학원 AC5
    ArrayList<Document> subwayList = new ArrayList<>(); //지하철 SW8
    ArrayList<Document> bankList = new ArrayList<>(); //은행 BK9
    ArrayList<Document> hospitalList = new ArrayList<>(); //병원 HP8
    ArrayList<Document> pharmacyList = new ArrayList<>(); //약국 PM9
    ArrayList<Document> cafeList = new ArrayList<>(); //카페

    ArrayList<Document> documentArrayList = new ArrayList<>(); //지역명 검색 결과 리스트

    MapPOIItem searchMarker = new MapPOIItem();


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_PORTRAIT);
        setContentView(R.layout.activity_map);
        bus.register(this); //정류소 등록
        initView();
    }


    private void initView() {
        //binding

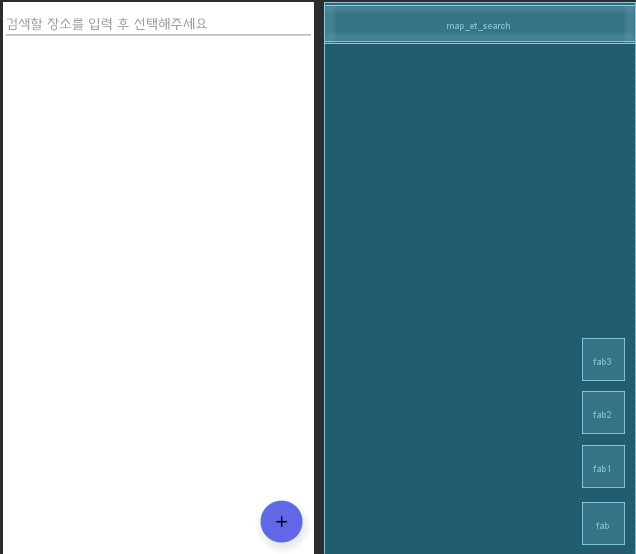

        mSearchEdit = findViewById(R.id.map_et_search);
        fab_open = AnimationUtils.loadAnimation(getApplicationContext(), R.anim.fab_open);
        fab_close = AnimationUtils.loadAnimation(getApplicationContext(), R.anim.fab_close);
        fab = findViewById(R.id.fab);
        fab1 = findViewById(R.id.fab1);
        fab2 = findViewById(R.id.fab2);
        fab3 = findViewById(R.id.fab3);
        searchDetailFab = findViewById(R.id.fab_detail);
        stopTrackingFab = findViewById(R.id.fab_stop_tracking);
        mLoaderLayout = findViewById(R.id.loaderLayout);
        mMapView = new MapView(this);
        mMapViewContainer = findViewById(R.id.map_mv_mapcontainer);
        mMapViewContainer.addView(mMapView);
        recyclerView = findViewById(R.id.map_recyclerview);
        LocationAdapter locationAdapter = new LocationAdapter(documentArrayList, getApplicationContext(), mSearchEdit, recyclerView);
        LinearLayoutManager layoutManager = new LinearLayoutManager(this, LinearLayoutManager.VERTICAL, false); //레이아웃매니저 생성
        recyclerView.addItemDecoration(new DividerItemDecoration(getApplicationContext(), DividerItemDecoration.VERTICAL)); //아래구분선 세팅
        recyclerView.setLayoutManager(layoutManager);
        recyclerView.setAdapter(locationAdapter);

        //맵 리스너
        mMapView.setMapViewEventListener(this); // this에 MapView.MapViewEventListener 구현.
        mMapView.setPOIItemEventListener(this);
        mMapView.setOpenAPIKeyAuthenticationResultListener(this);

        //버튼리스너
        fab.setOnClickListener(this);
        fab1.setOnClickListener(this);
        fab2.setOnClickListener(this);
        fab3.setOnClickListener(this);
        searchDetailFab.setOnClickListener(this);
        stopTrackingFab.setOnClickListener(this);

        Toast.makeText(this, "맵을 로딩중입니다", Toast.LENGTH_SHORT).show();

        //맵 리스너 (현재위치 업데이트)
        mMapView.setCurrentLocationEventListener(this);
        //setCurrentLocationTrackingMode (지도랑 현재위치 좌표 찍어주고 따라다닌다.)
        mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOnWithoutHeading);
        mLoaderLayout.setVisibility(View.VISIBLE);

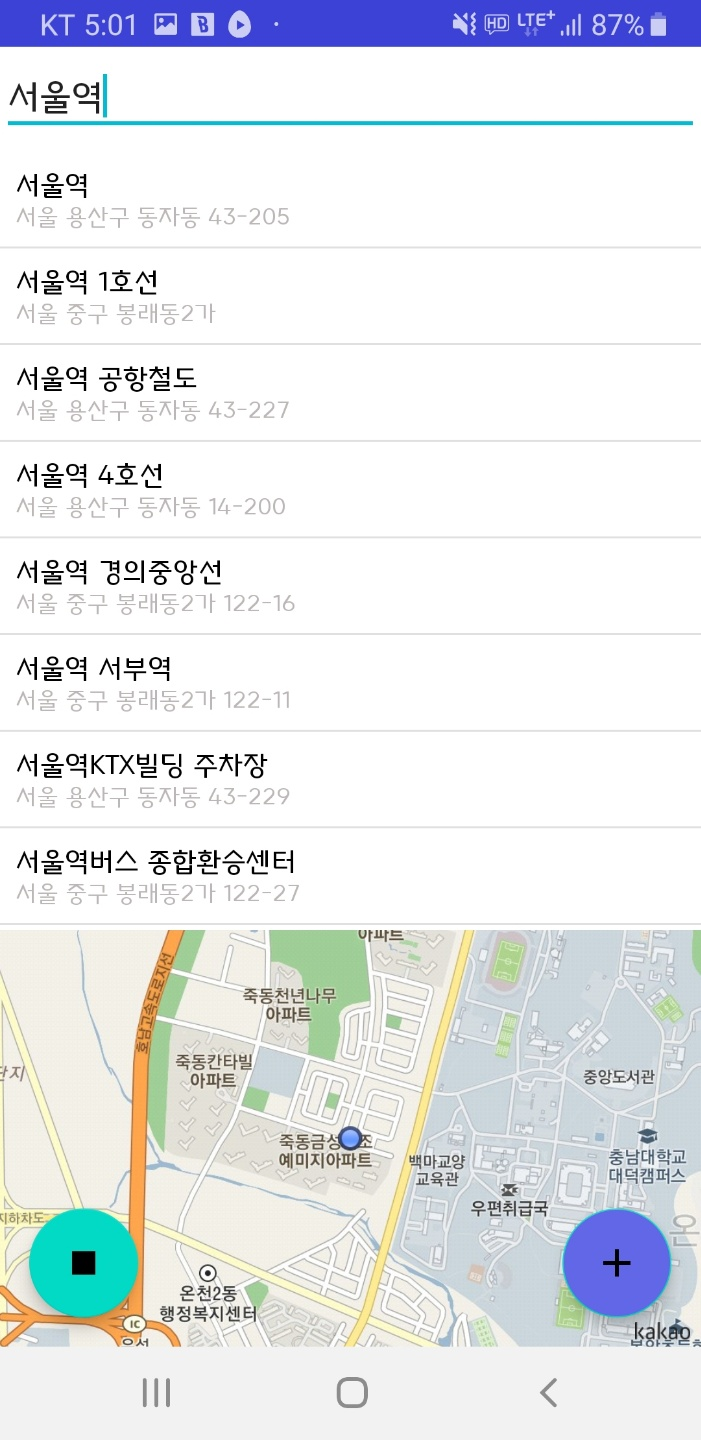

        // editText 검색 텍스처이벤트
        mSearchEdit.addTextChangedListener(new TextWatcher() {
            @Override
            public void beforeTextChanged(CharSequence charSequence, int start, int count, int after) {
                // 입력하기 전에
                recyclerView.setVisibility(View.VISIBLE);
            }

            @Override
            public void onTextChanged(CharSequence charSequence, int start, int before, int count) {
                if (charSequence.length() >= 1) {
                    // if (SystemClock.elapsedRealtime() - mLastClickTime < 500) {

                    documentArrayList.clear();
                    locationAdapter.clear();
                    locationAdapter.notifyDataSetChanged();
                    ApiInterface apiInterface = ApiClient.getApiClient().create(ApiInterface.class);
                    Call<CategoryResult> call = apiInterface.getSearchLocation(getString(R.string.restapi_key), charSequence.toString(), 15);
                    call.enqueue(new Callback<CategoryResult>() {
                        @Override
                        public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                            if (response.isSuccessful()) {
                                assert response.body() != null;
                                for (Document document : response.body().getDocuments()) {
                                    locationAdapter.addItem(document);
                                }
                                locationAdapter.notifyDataSetChanged();
                            }
                        }

                        @Override
                        public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {

                        }
                    });
                    //}
                    //mLastClickTime = SystemClock.elapsedRealtime();
                } else {
                    if (charSequence.length() <= 0) {
                        recyclerView.setVisibility(View.GONE);
                    }
                }
            }

            @Override
            public void afterTextChanged(Editable editable) {
                // 입력이 끝났을 때
            }
        });

        mSearchEdit.setOnFocusChangeListener(new View.OnFocusChangeListener() {
            @Override
            public void onFocusChange(View view, boolean hasFocus) {
                if (hasFocus) {
                } else {
                    recyclerView.setVisibility(View.GONE);
                }
            }
        });
        mSearchEdit.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                FancyToast.makeText(getApplicationContext(), "검색리스트에서 장소를 선택해주세요", FancyToast.LENGTH_SHORT, FancyToast.INFO, true).show();
            }
        });
    }

    @Override
    public void onClick(View v) {
        int id = v.getId();
        switch (id) {
            case R.id.fab:

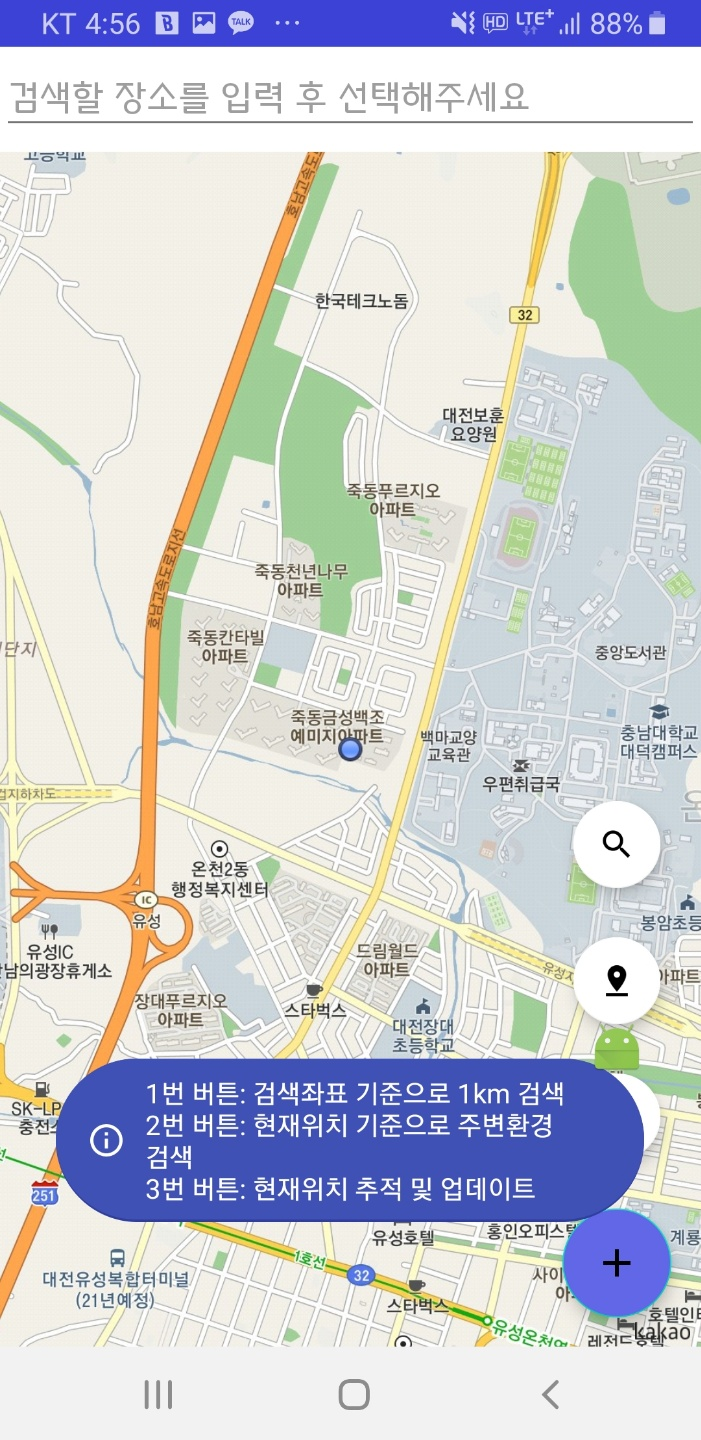

                FancyToast.makeText(this, "1번 버튼: 검색좌표 기준으로 1km 검색" +
                        "\n2번 버튼: 현재위치 기준으로 주변환경 검색" +
                        "\n3번 버튼: 현재위치 추적 및 업데이트", FancyToast.LENGTH_SHORT, FancyToast.INFO, true).show();
                anim();
                break;

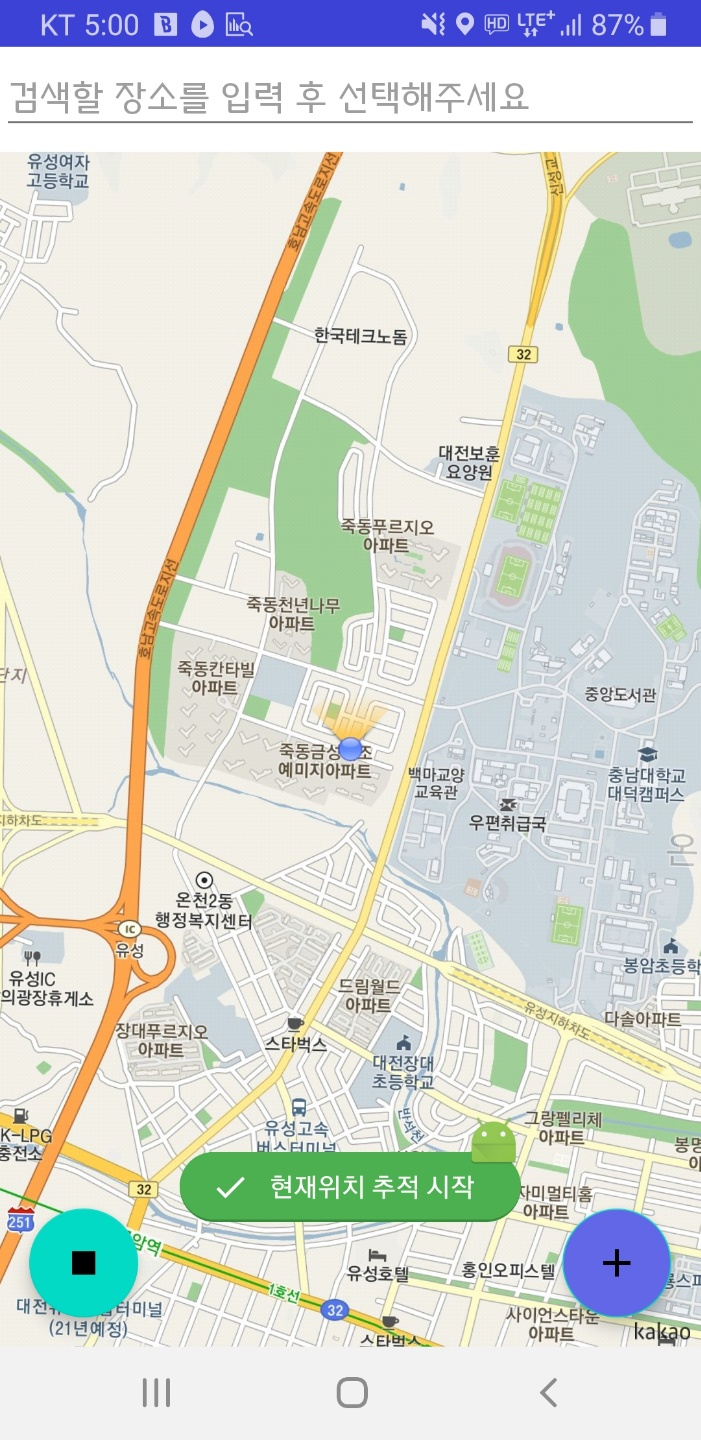

            case R.id.fab1: //아래버튼에서부터 1~3임
                FancyToast.makeText(this, "현재위치 추적 시작", FancyToast.LENGTH_SHORT, FancyToast.SUCCESS, true).show();
                searchDetailFab.setVisibility(View.GONE);
                mLoaderLayout.setVisibility(View.VISIBLE);
                isTrackingMode = true;
                mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOnWithHeading);
                anim();
                stopTrackingFab.setVisibility(View.VISIBLE);
                mLoaderLayout.setVisibility(View.GONE);
                break;

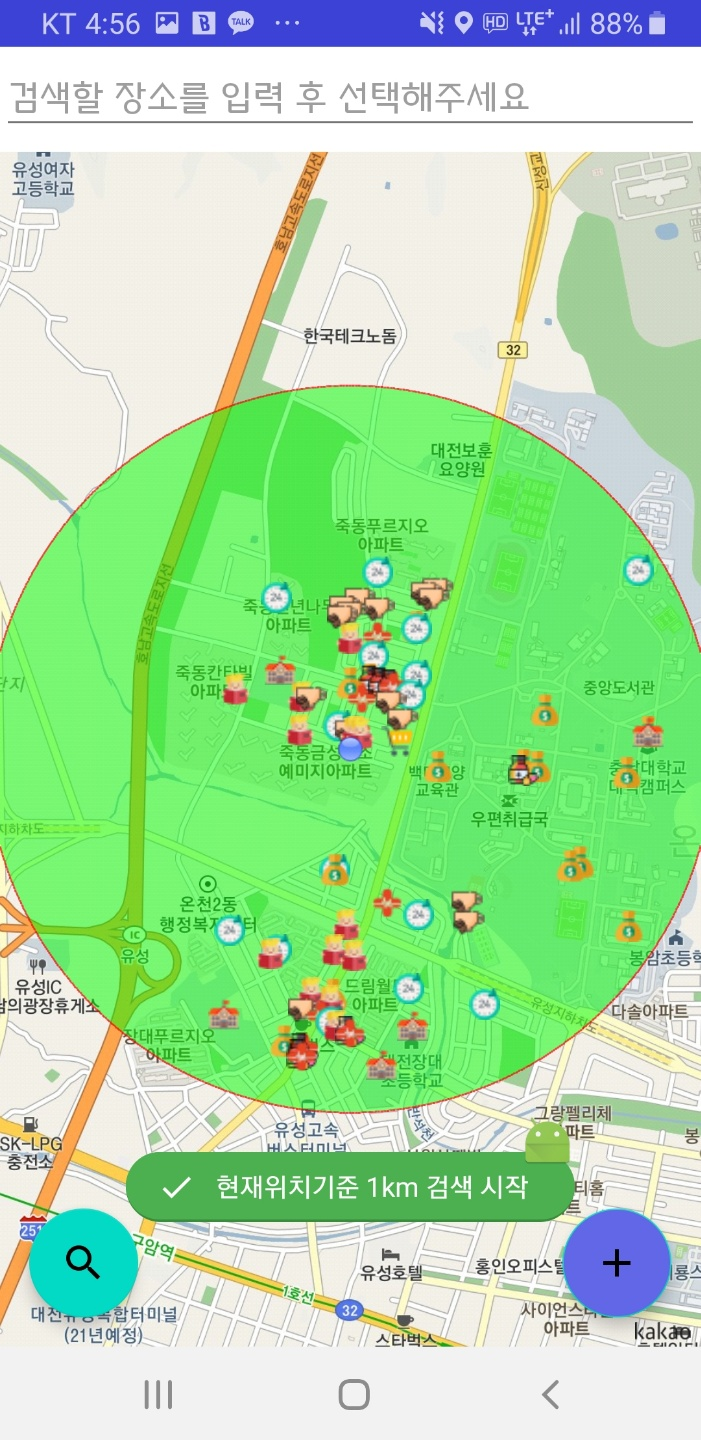

            case R.id.fab2:
                isTrackingMode = false;
                FancyToast.makeText(this, "현재위치기준 1km 검색 시작", FancyToast.LENGTH_SHORT, FancyToast.SUCCESS, true).show();
                stopTrackingFab.setVisibility(View.GONE);
                mLoaderLayout.setVisibility(View.VISIBLE);
                anim();

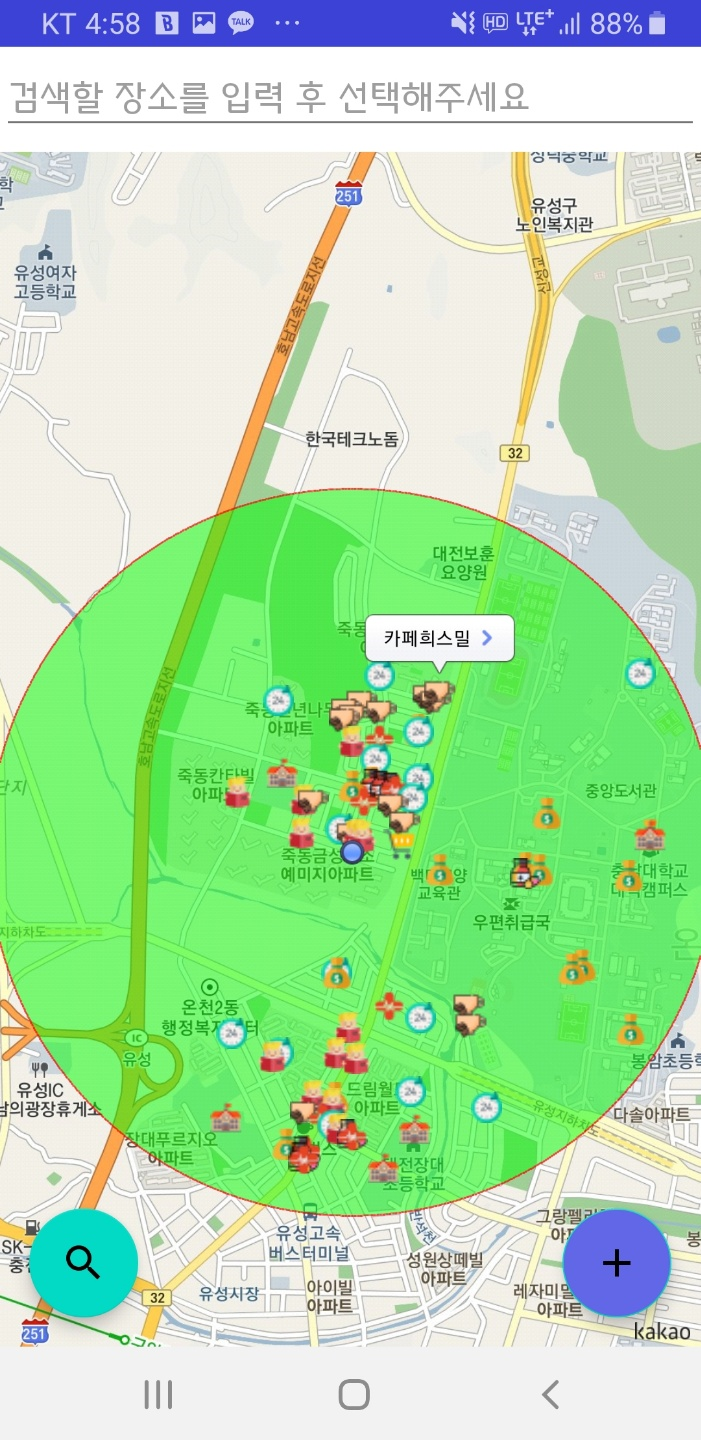

                //현재 위치 기준으로 1km 검색
                mMapView.removeAllPOIItems();
                mMapView.removeAllCircles();
                requestSearchLocal(mCurrentLng, mCurrentLat);
                mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOnWithoutHeading);
                break;
            case R.id.fab3:
                isTrackingMode = false;
                mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOff);
                mLoaderLayout.setVisibility(View.VISIBLE);
                anim();
                if (mSearchLat != -1 && mSearchLng != -1) {
                    mMapView.removeAllPOIItems();
                    mMapView.removeAllCircles();
                    mMapView.addPOIItem(searchMarker);
                    requestSearchLocal(mSearchLng, mSearchLat);
                } else {
                    FancyToast.makeText(this, "검색 먼저 해주세요", FancyToast.LENGTH_SHORT, FancyToast.ERROR, true).show();
                }
                mLoaderLayout.setVisibility(View.GONE);
                break;

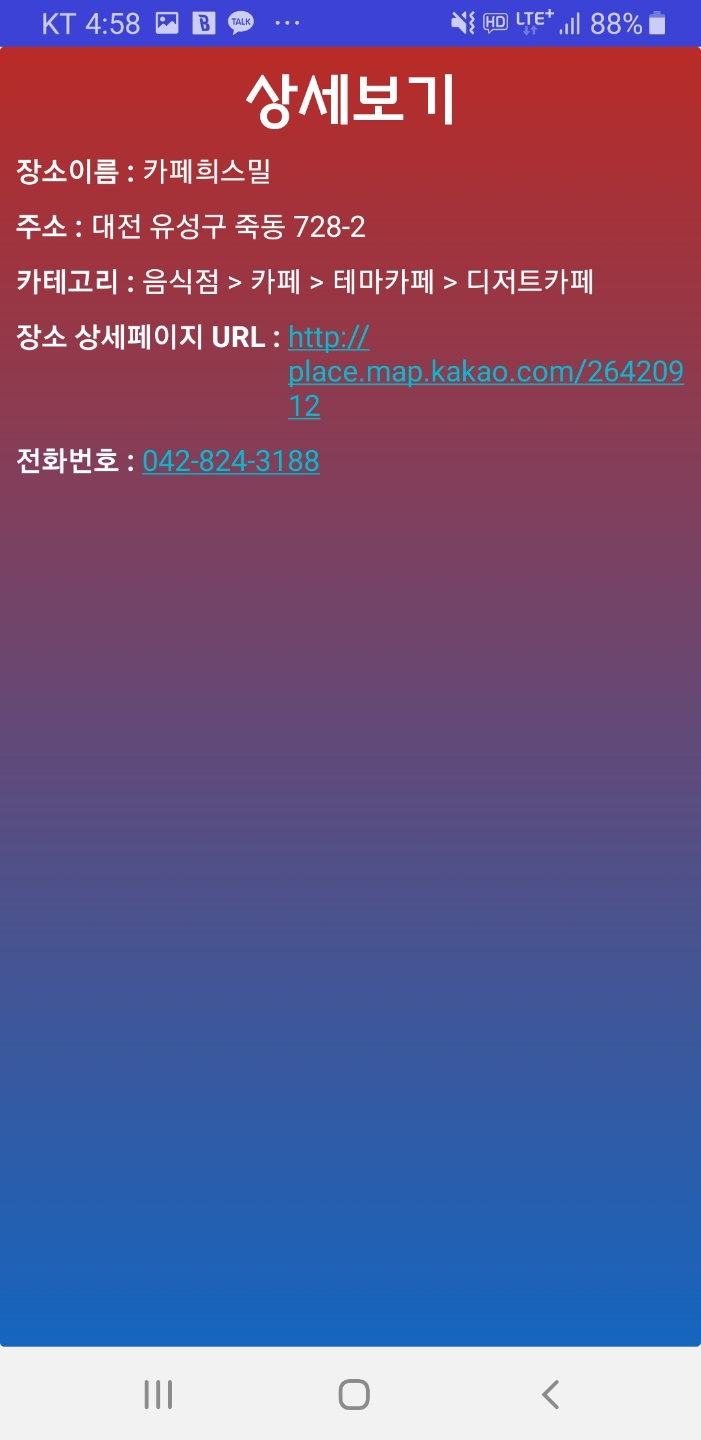

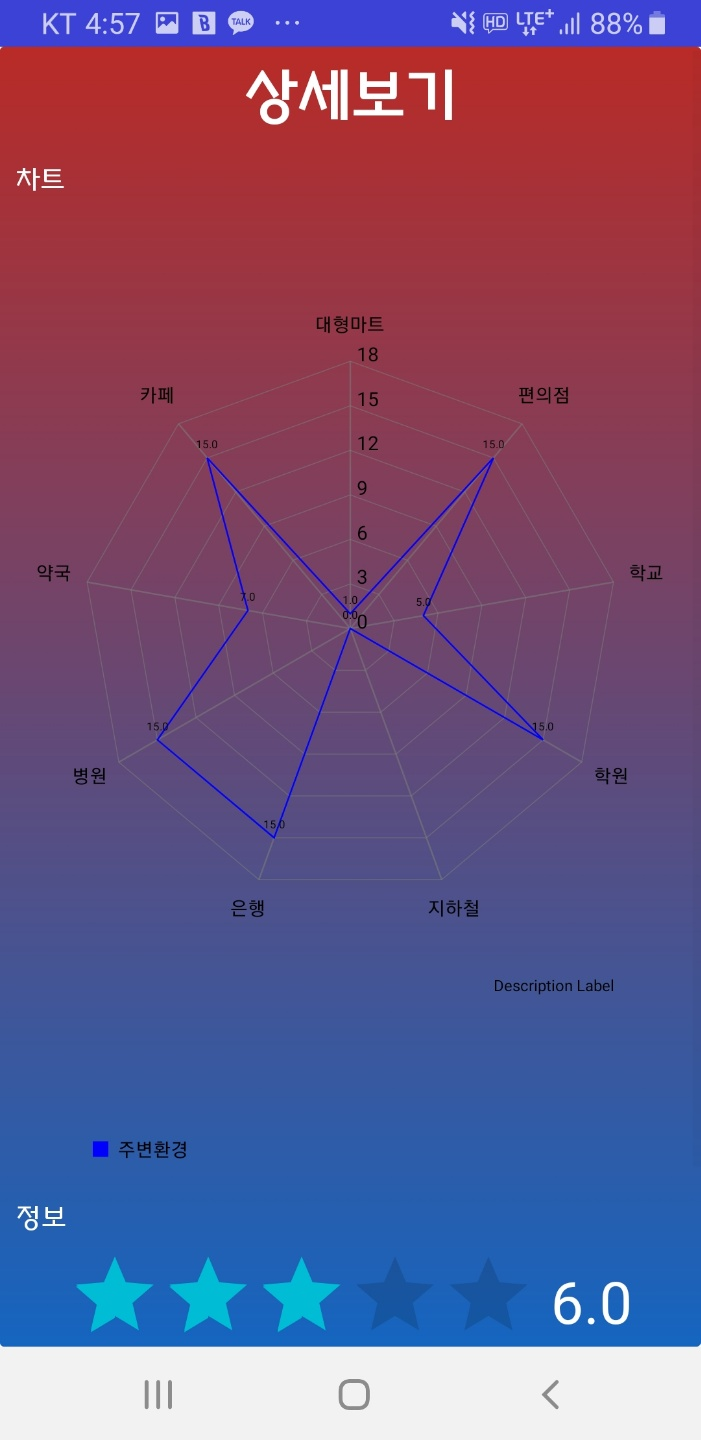

            case R.id.fab_detail:
                FancyToast.makeText(this, "검색결과 상세보기", FancyToast.LENGTH_SHORT, FancyToast.SUCCESS, true).show();
                Intent detailIntent = new Intent(MapActivity.this, MapSearchDetailActivity.class);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA1, bigMartList);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA2, gs24List);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA3, schoolList);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA4, academyList);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA5, subwayList);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA6, bankList);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA7, hospitalList);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA8, pharmacyList);
                detailIntent.putParcelableArrayListExtra(IntentKey.CATEGOTY_SEARCH_MODEL_EXTRA9, cafeList);
                overridePendingTransition(R.anim.fade_in_splash, R.anim.fade_out_splash);
                startActivity(detailIntent);
                Log.d(TAG, "fab_detail");
                break;
            case R.id.fab_stop_tracking:
                isTrackingMode = false;
                mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOff);
                stopTrackingFab.setVisibility(View.GONE);
                FancyToast.makeText(this, "현재위치 추적 종료", FancyToast.LENGTH_SHORT, FancyToast.SUCCESS, true).show();
                break;
        }
    }

    private void requestSearchLocal(double x, double y) {
        bigMartList.clear();
        gs24List.clear();
        schoolList.clear();
        academyList.clear();
        subwayList.clear();
        bankList.clear();
        hospitalList.clear();
        pharmacyList.clear();
        cafeList.clear();
        ApiInterface apiInterface = ApiClient.getApiClient().create(ApiInterface.class);
        Call<CategoryResult> call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "MT1", x + "", y + "", 1000);
        call.enqueue(new Callback<CategoryResult>() {
            @Override
            public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                if (response.isSuccessful()) {
                    assert response.body() != null;
                    if (response.body().getDocuments() != null) {
                        Log.d(TAG, "bigMartList Success");
                        bigMartList.addAll(response.body().getDocuments());
                    }
                    call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "CS2", x + "", y + "", 1000);
                    call.enqueue(new Callback<CategoryResult>() {
                        @Override
                        public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                            if (response.isSuccessful()) {
                                assert response.body() != null;
                                Log.d(TAG, "gs24List Success");
                                gs24List.addAll(response.body().getDocuments());
                                call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "SC4", x + "", y + "", 1000);
                                call.enqueue(new Callback<CategoryResult>() {
                                    @Override
                                    public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                                        if (response.isSuccessful()) {
                                            assert response.body() != null;
                                            Log.d(TAG, "schoolList Success");
                                            schoolList.addAll(response.body().getDocuments());
                                            call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "AC5", x + "", y + "", 1000);
                                            call.enqueue(new Callback<CategoryResult>() {
                                                @Override
                                                public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                                                    if (response.isSuccessful()) {
                                                        assert response.body() != null;
                                                        Log.d(TAG, "academyList Success");
                                                        academyList.addAll(response.body().getDocuments());
                                                        call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "SW8", x + "", y + "", 1000);
                                                        call.enqueue(new Callback<CategoryResult>() {
                                                            @Override
                                                            public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                                                                if (response.isSuccessful()) {
                                                                    assert response.body() != null;
                                                                    Log.d(TAG, "subwayList Success");
                                                                    subwayList.addAll(response.body().getDocuments());
                                                                    call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "BK9", x + "", y + "", 1000);
                                                                    call.enqueue(new Callback<CategoryResult>() {
                                                                        @Override
                                                                        public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                                                                            if (response.isSuccessful()) {
                                                                                assert response.body() != null;
                                                                                Log.d(TAG, "bankList Success");
                                                                                bankList.addAll(response.body().getDocuments());
                                                                                call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "HP8", x + "", y + "", 1000);
                                                                                call.enqueue(new Callback<CategoryResult>() {
                                                                                    @Override
                                                                                    public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                                                                                        if (response.isSuccessful()) {
                                                                                            assert response.body() != null;
                                                                                            Log.d(TAG, "hospitalList Success");
                                                                                            hospitalList.addAll(response.body().getDocuments());
                                                                                            call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "PM9", x + "", y + "", 1000);
                                                                                            call.enqueue(new Callback<CategoryResult>() {
                                                                                                @Override
                                                                                                public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                                                                                                    if (response.isSuccessful()) {
                                                                                                        assert response.body() != null;
                                                                                                        Log.d(TAG, "pharmacyList Success");
                                                                                                        pharmacyList.addAll(response.body().getDocuments());
                                                                                                        call = apiInterface.getSearchCategory(getString(R.string.restapi_key), "CE7", x + "", y + "", 1000);
                                                                                                        call.enqueue(new Callback<CategoryResult>() {
                                                                                                            @Override
                                                                                                            public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                                                                                                                if (response.isSuccessful()) {
                                                                                                                    assert response.body() != null;
                                                                                                                    Log.d(TAG, "cafeList Success");
                                                                                                                    cafeList.addAll(response.body().getDocuments());

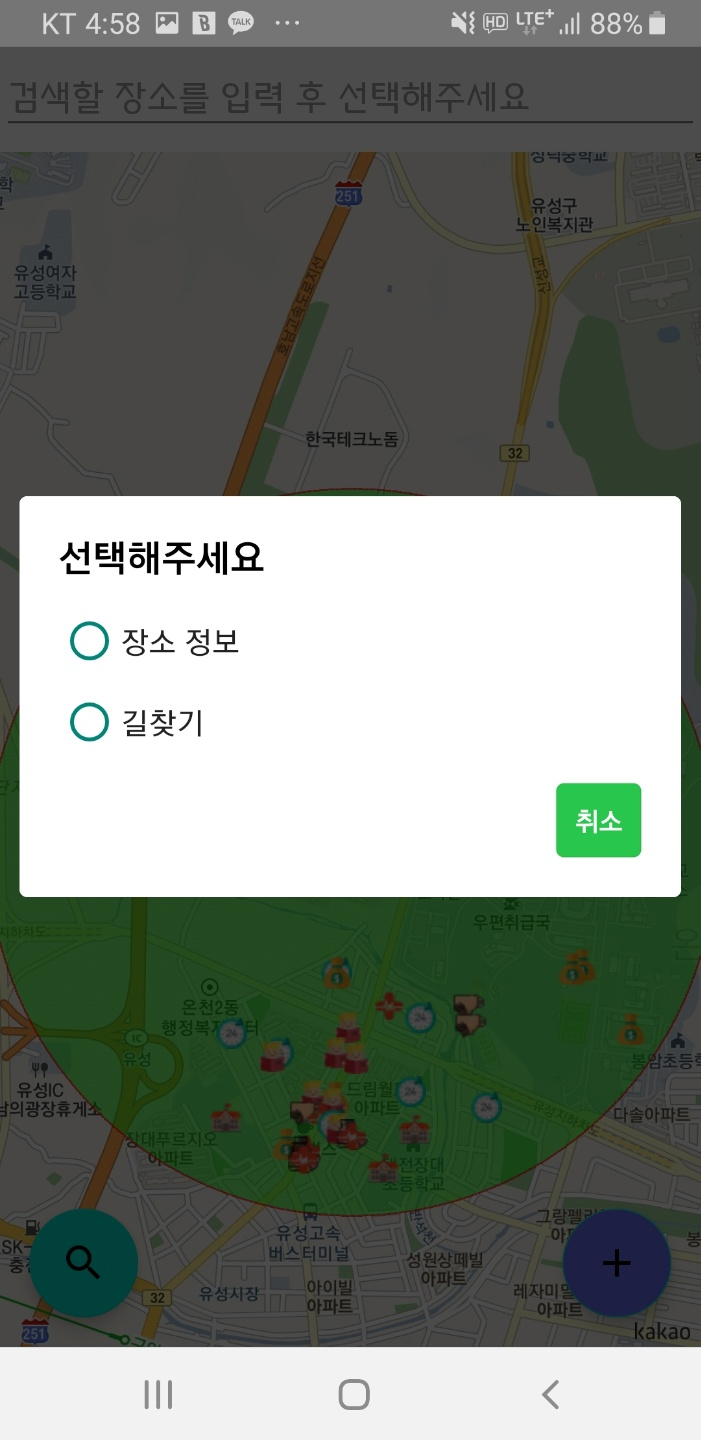

                                                                                                                    //모두 통신 성공 시 circle 생성
                                                                                                                    MapCircle circle1 = new MapCircle(
                                                                                                                            MapPoint.mapPointWithGeoCoord(y, x), // center
                                                                                                                            1000, // radius
                                                                                                                            Color.argb(128, 255, 0, 0), // strokeColor
                                                                                                                            Color.argb(128, 0, 255, 0) // fillColor
                                                                                                                    );
                                                                                                                    circle1.setTag(5678);
                                                                                                                    mMapView.addCircle(circle1);
                                                                                                                    Log.d("SIZE1", bigMartList.size() + "");
                                                                                                                    Log.d("SIZE2", gs24List.size() + "");
                                                                                                                    Log.d("SIZE3", schoolList.size() + "");
                                                                                                                    Log.d("SIZE4", academyList.size() + "");
                                                                                                                    Log.d("SIZE5", subwayList.size() + "");
                                                                                                                    Log.d("SIZE6", bankList.size() + "");
                                                                                                                    //마커 생성
                                                                                                                    int tagNum = 10;
                                                                                                                    for (Document document : bigMartList) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_big_mart_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f); // 마커 이미지중 기준이 되는 위치(앵커포인트) 지정 - 마커 이미지 좌측 상단 기준 x(0.0f ~ 1.0f), y(0.0f ~ 1.0f) 값.
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                    }
                                                                                                                    for (Document document : gs24List) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_24_mart_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f);
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                    }
                                                                                                                    for (Document document : schoolList) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_school_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f);
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                    }
                                                                                                                    for (Document document : academyList) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_academy_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f);
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                    }
                                                                                                                    for (Document document : subwayList) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_subway_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f);
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                    }
                                                                                                                    for (Document document : bankList) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_bank_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f);
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                    }
                                                                                                                    for (Document document : hospitalList) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_hospital_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f);
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                    }
                                                                                                                    for (Document document : pharmacyList) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_pharmacy_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f);
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                        //자세히보기 fab 버튼 보이게
                                                                                                                        mLoaderLayout.setVisibility(View.GONE);
                                                                                                                        searchDetailFab.setVisibility(View.VISIBLE);
                                                                                                                    }
                                                                                                                    for (Document document : cafeList) {
                                                                                                                        MapPOIItem marker = new MapPOIItem();
                                                                                                                        marker.setItemName(document.getPlaceName());
                                                                                                                        marker.setTag(tagNum++);
                                                                                                                        double x = Double.parseDouble(document.getY());
                                                                                                                        double y = Double.parseDouble(document.getX());
                                                                                                                        //카카오맵은 참고로 new MapPoint()로  생성못함. 좌표기준이 여러개라 이렇게 메소드로 생성해야함
                                                                                                                        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(x, y);
                                                                                                                        marker.setMapPoint(mapPoint);
                                                                                                                        marker.setMarkerType(MapPOIItem.MarkerType.CustomImage); // 마커타입을 커스텀 마커로 지정.
                                                                                                                        marker.setCustomImageResourceId(R.drawable.ic_cafe_marker); // 마커 이미지.
                                                                                                                        marker.setCustomImageAutoscale(false); // hdpi, xhdpi 등 안드로이드 플랫폼의 스케일을 사용할 경우 지도 라이브러리의 스케일 기능을 꺼줌.
                                                                                                                        marker.setCustomImageAnchor(0.5f, 1.0f);
                                                                                                                        mMapView.addPOIItem(marker);
                                                                                                                        //자세히보기 fab 버튼 보이게
                                                                                                                        mLoaderLayout.setVisibility(View.GONE);
                                                                                                                        searchDetailFab.setVisibility(View.VISIBLE);
                                                                                                                    }
                                                                                                                }
                                                                                                            }

                                                                                                            @Override
                                                                                                            public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {

                                                                                                            }
                                                                                                        });
                                                                                                    }
                                                                                                }

                                                                                                @Override
                                                                                                public void onFailure(@NotNull Call<CategoryResult> call, Throwable t) {

                                                                                                }
                                                                                            });
                                                                                        }
                                                                                    }

                                                                                    @Override
                                                                                    public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {

                                                                                    }
                                                                                });
                                                                            }
                                                                        }

                                                                        @Override
                                                                        public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {

                                                                        }
                                                                    });
                                                                }
                                                            }

                                                            @Override
                                                            public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {

                                                            }
                                                        });
                                                    }
                                                }

                                                @Override
                                                public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {

                                                }
                                            });
                                        }
                                    }

                                    @Override
                                    public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {

                                    }
                                });
                            }
                        }

                        @Override
                        public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {

                        }
                    });
                }
            }

            @Override
            public void onFailure(@NotNull Call<CategoryResult> call, @NotNull Throwable t) {
                Log.d(TAG, "FAIL");
            }
        });
    }

    public void anim() {
        if (isFabOpen) {
            fab1.startAnimation(fab_close);
            fab2.startAnimation(fab_close);
            fab3.startAnimation(fab_close);
            fab1.setClickable(false);
            fab2.setClickable(false);
            fab3.setClickable(false);
            isFabOpen = false;
        } else {
            fab1.startAnimation(fab_open);
            fab2.startAnimation(fab_open);
            fab3.startAnimation(fab_open);
            fab1.setClickable(true);
            fab2.setClickable(true);
            fab3.setClickable(true);
            isFabOpen = true;
        }
    }


    @Override
    public void onMapViewInitialized(MapView mapView) {
    }

    @Override
    public void onMapViewCenterPointMoved(MapView mapView, MapPoint mapPoint) {
    }

    @Override
    public void onMapViewZoomLevelChanged(MapView mapView, int i) {
    }

    //맵 한번 클릭시 호출
    @Override
    public void onMapViewSingleTapped(MapView mapView, MapPoint mapPoint) {
        //검색창켜져있을때 맵클릭하면 검색창 사라지게함
        recyclerView.setVisibility(View.GONE);
    }

    @Override
    public void onMapViewDoubleTapped(MapView mapView, MapPoint mapPoint) {

    }

    @Override
    public void onMapViewLongPressed(MapView mapView, MapPoint mapPoint) {

    }

    @Override
    public void onMapViewDragStarted(MapView mapView, MapPoint mapPoint) {

    }

    @Override
    public void onMapViewDragEnded(MapView mapView, MapPoint mapPoint) {

    }

    @Override
    public void onMapViewMoveFinished(MapView mapView, MapPoint mapPoint) {

    }

    @Override
    public void onDaumMapOpenAPIKeyAuthenticationResult(MapView mapView, int i, String s) {

    }

    @Override
    public void onPOIItemSelected(MapView mapView, MapPOIItem mapPOIItem) {

    }

    // 길찾기 카카오맵 호출( 카카오맵앱이 없을 경우 플레이스토어 링크로 이동)
    public void showMap(Uri geoLocation) {
        Intent intent;
        try {
            FancyToast.makeText(getApplicationContext(), "카카오맵으로 길찾기를 시도합니다.", FancyToast.LENGTH_SHORT, FancyToast.INFO, true).show();
            intent = new Intent(Intent.ACTION_VIEW, geoLocation);
            intent.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
            startActivity(intent);
        } catch (Exception e) {
            FancyToast.makeText(getApplicationContext(), "길찾기에는 카카오맵이 필요합니다. 다운받아주시길 바랍니다.", FancyToast.LENGTH_SHORT, FancyToast.INFO, true).show();
            intent = new Intent(Intent.ACTION_VIEW).setData(Uri.parse("https://play.google.com/store/apps/details?id=net.daum.android.map&hl=ko"));
            intent.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
            startActivity(intent);
        }
    }

    @Override
    public void onCalloutBalloonOfPOIItemTouched(MapView mapView, MapPOIItem mapPOIItem) {
    }

    //말풍선(POLLITEM) 클릭시 호출
    @Override
    public void onCalloutBalloonOfPOIItemTouched(MapView mapView, MapPOIItem mapPOIItem, MapPOIItem.CalloutBalloonButtonType calloutBalloonButtonType) {
        double lat = mapPOIItem.getMapPoint().getMapPointGeoCoord().latitude;
        double lng = mapPOIItem.getMapPoint().getMapPointGeoCoord().longitude;
        Toast.makeText(this, mapPOIItem.getItemName(), Toast.LENGTH_SHORT).show();
        CFAlertDialog.Builder builder = new CFAlertDialog.Builder(this);
        builder.setDialogStyle(CFAlertDialog.CFAlertStyle.ALERT);
        builder.setTitle("선택해주세요");
        builder.setSingleChoiceItems(new String[]{"장소 정보", "길찾기"}, 2, new DialogInterface.OnClickListener() {
            @Override
            public void onClick(DialogInterface dialogInterface, int index) {
                if (index == 0) {
                    mLoaderLayout.setVisibility(View.VISIBLE);
                    ApiInterface apiInterface = ApiClient.getApiClient().create(ApiInterface.class);
                    Call<CategoryResult> call = apiInterface.getSearchLocationDetail(getString(R.string.restapi_key), mapPOIItem.getItemName(), String.valueOf(lat), String.valueOf(lng), 1);
                    call.enqueue(new Callback<CategoryResult>() {
                        @Override
                        public void onResponse(@NotNull Call<CategoryResult> call, @NotNull Response<CategoryResult> response) {
                            mLoaderLayout.setVisibility(View.GONE);
                            if (response.isSuccessful()) {
                                Intent intent = new Intent(MapActivity.this, PlaceDetailActivity.class);
                                assert response.body() != null;
                                intent.putExtra(IntentKey.PLACE_SEARCH_DETAIL_EXTRA, response.body().getDocuments().get(0));
                                startActivity(intent);
                            }
                        }

                        @Override
                        public void onFailure(Call<CategoryResult> call, Throwable t) {
                            FancyToast.makeText(getApplicationContext(), "해당장소에 대한 상세정보는 없습니다.", FancyToast.LENGTH_SHORT, FancyToast.ERROR, true).show();
                            mLoaderLayout.setVisibility(View.GONE);
                            Intent intent = new Intent(MapActivity.this, PlaceDetailActivity.class);
                            startActivity(intent);
                        }
                    });
                } else if (index == 1) {
                    showMap(Uri.parse("daummaps://route?sp=" + mCurrentLat + "," + mCurrentLng + "&ep=" + lat + "," + lng + "&by=FOOT"));
                }
            }
        });
        builder.addButton("취소", -1, -1, CFAlertDialog.CFAlertActionStyle.POSITIVE, CFAlertDialog.CFAlertActionAlignment.END, new DialogInterface.OnClickListener() {
            @Override
            public void onClick(DialogInterface dialogInterface, int i) {
                dialogInterface.dismiss();
            }
        });
        builder.show();

    }

    // 마커 드래그이동시 호출
    @Override
    public void onDraggablePOIItemMoved(MapView mapView, MapPOIItem mapPOIItem, MapPoint mapPoint) {
        MapPoint.GeoCoordinate mapPointGeo = mapPoint.getMapPointGeoCoord();
        mSearchName = "드래그한 장소";
        mSearchLng = mapPointGeo.longitude;
        mSearchLat = mapPointGeo.latitude;
        mMapView.setMapCenterPoint(MapPoint.mapPointWithGeoCoord(mSearchLat, mSearchLng), true);
        searchMarker.setItemName(mSearchName);
        MapPoint mapPoint2 = MapPoint.mapPointWithGeoCoord(mSearchLat, mSearchLng);
        searchMarker.setMapPoint(mapPoint2);
        searchMarker.setMarkerType(MapPOIItem.MarkerType.BluePin); // 기본으로 제공하는 BluePin 마커 모양.
        searchMarker.setSelectedMarkerType(MapPOIItem.MarkerType.RedPin); // 마커를 클릭했을때, 기본으로 제공하는 RedPin 마커 모양.
        searchMarker.setDraggable(true);
        mMapView.addPOIItem(searchMarker);
    }

    /*
     *  현재 위치 업데이트(setCurrentLocationEventListener)
     */
    @Override
    public void onCurrentLocationUpdate(MapView mapView, MapPoint mapPoint, float accuracyInMeters) {
        MapPoint.GeoCoordinate mapPointGeo = mapPoint.getMapPointGeoCoord();
        Log.i(TAG, String.format("MapView onCurrentLocationUpdate (%f,%f) accuracy (%f)", mapPointGeo.latitude, mapPointGeo.longitude, accuracyInMeters));
        currentMapPoint = MapPoint.mapPointWithGeoCoord(mapPointGeo.latitude, mapPointGeo.longitude);
        //이 좌표로 지도 중심 이동
        mMapView.setMapCenterPoint(currentMapPoint, true);
        //전역변수로 현재 좌표 저장
        mCurrentLat = mapPointGeo.latitude;
        mCurrentLng = mapPointGeo.longitude;
        Log.d(TAG, "현재위치 => " + mCurrentLat + "  " + mCurrentLng);
        mLoaderLayout.setVisibility(View.GONE);
        //트래킹 모드가 아닌 단순 현재위치 업데이트일 경우, 한번만 위치 업데이트하고 트래킹을 중단시키기 위한 로직
        if (!isTrackingMode) {
            mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOff);
        }
    }

    @Override
    public void onCurrentLocationDeviceHeadingUpdate(MapView mapView, float v) {

    }

    @Override
    public void onCurrentLocationUpdateFailed(MapView mapView) {
        Log.i(TAG, "onCurrentLocationUpdateFailed");
        mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOnWithoutHeading);
    }

    @Override
    public void onCurrentLocationUpdateCancelled(MapView mapView) {
        Log.i(TAG, "onCurrentLocationUpdateCancelled");
        mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOnWithoutHeading);
    }

    @Subscribe //검색예시 클릭시 이벤트 오토버스
    public void search(Document document) {//public항상 붙여줘야함
        FancyToast.makeText(getApplicationContext(), document.getPlaceName() + " 검색", FancyToast.LENGTH_SHORT, FancyToast.SUCCESS, true).show();
        mSearchName = document.getPlaceName();
        mSearchLng = Double.parseDouble(document.getX());
        mSearchLat = Double.parseDouble(document.getY());
        mMapView.setMapCenterPoint(MapPoint.mapPointWithGeoCoord(mSearchLat, mSearchLng), true);
        mMapView.removePOIItem(searchMarker);
        searchMarker.setItemName(mSearchName);
        searchMarker.setTag(10000);
        MapPoint mapPoint = MapPoint.mapPointWithGeoCoord(mSearchLat, mSearchLng);
        searchMarker.setMapPoint(mapPoint);
        searchMarker.setMarkerType(MapPOIItem.MarkerType.BluePin); // 기본으로 제공하는 BluePin 마커 모양.
        searchMarker.setSelectedMarkerType(MapPOIItem.MarkerType.RedPin); // 마커를 클릭했을때, 기본으로 제공하는 RedPin 마커 모양.
        //마커 드래그 가능하게 설정
        searchMarker.setDraggable(true);
        mMapView.addPOIItem(searchMarker);
    }


    @Override
    public void finish() {
        super.finish();
        bus.unregister(this); //이액티비티 떠나면 정류소 해제해줌
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        mMapView.setCurrentLocationTrackingMode(MapView.CurrentLocationTrackingMode.TrackingModeOff);
        mMapView.setShowCurrentLocationMarker(false);
    }

    @Override
    public void onBackPressed() {
        super.onBackPressed();
    }
}











[activity_map.xml]

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".activities.MapActivity"
    >

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        >

        <LinearLayout
            android:layout_marginTop="4dp"
            android:layout_width="match_parent"
            android:layout_height="50dp"
            android:orientation="horizontal"
            >

            <EditText
                android:fontFamily="@font/binggraemelona"
                android:hint="검색할 장소를 입력 후 선택해주세요"
                android:id="@+id/map_et_search"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                />
        </LinearLayout>
        <androidx.recyclerview.widget.RecyclerView
            android:id="@+id/map_recyclerview"
            android:visibility="gone"
            android:layout_width="match_parent"
            android:layout_height="400dp"/>

        <RelativeLayout
            android:id="@+id/map_mv_mapcontainer"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            />
    </LinearLayout>

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab3"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_marginRight="15sp"
        android:layout_marginBottom="230dp"
        android:src="@drawable/ic_search_black_24dp"
        android:visibility="invisible"
        app:backgroundTint="#ffffff"
        app:elevation="6dp"
        app:pressedTranslationZ="12dp"
        />

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_marginRight="15sp"
        android:layout_marginBottom="160dp"
        android:src="@drawable/ic_current_location_seach_black_24dp"
        android:visibility="invisible"
        app:backgroundTint="#ffffff"
        app:elevation="6dp"
        app:pressedTranslationZ="12dp"
        />


    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_marginRight="15sp"
        android:layout_marginBottom="90dp"
        android:src="@drawable/ic_location_searching_black_24dp"
        android:visibility="invisible"
        app:backgroundTint="#ffffff"
        app:elevation="6dp"
        app:pressedTranslationZ="12dp"
        />

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_margin="15sp"
        android:backgroundTint="@color/colorPrimary"
        android:src="@drawable/ic_add_black_24dp"
        />
    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab_detail"
        android:layout_width="wrap_content"
        android:visibility="gone"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|start"
        android:layout_margin="15sp"
        android:src="@drawable/ic_search_detail_mint_24dp"
        />

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab_stop_tracking"
        android:layout_width="wrap_content"
        android:visibility="gone"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|start"
        android:layout_margin="15sp"
        android:src="@drawable/ic_stop_red_24dp"
        />

    <include
        layout="@layout/view_loader"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

</FrameLayout>
























REST API 와 통신하기위한 retorfit2 코드

문서 :

developers.kakao.com/docs/latest/ko/local/dev-guide



Kakao Developers

카카오 API를 활용하여 다양한 어플리케이션을 개발해보세요. 카카오 로그인, 메시지 보내기, 친구 API, 인공지능 API 등을 제공합니다.

developers.kakao.com



[ApiClient.java]

package com.mtjin.mapogreen.api;

import retrofit2.Retrofit;
import retrofit2.converter.gson.GsonConverterFactory;

public class ApiClient {

    private static final String BASE_URL = "https://dapi.kakao.com/";
    private static Retrofit retrofit;

    public static Retrofit getApiClient(){
        if(retrofit == null){
            retrofit = new Retrofit.Builder()
                    .baseUrl(BASE_URL)
                    .addConverterFactory(GsonConverterFactory.create())
                    .build();
        }
        return  retrofit;
    }


}





[ApiInterface]

키워드로 장소검색 (장소이름으로 검색) 예시

package com.mtjin.mapogreen.api;

import com.mtjin.mapogreen.model.address_search.AddressSearch;
import com.mtjin.mapogreen.model.research.SearchResult;
import com.mtjin.mapogreen.model.category_search.CategoryResult;

import retrofit2.Call;
import retrofit2.http.GET;
import retrofit2.http.Header;
import retrofit2.http.Query;

public interface ApiInterface {
    //장소이름으로 검색
    @GET("v2/local/search/keyword.json")
    Call<CategoryResult> getSearchLocation(
            @Header("Authorization") String token,
            @Query("query") String query,
            @Query("size") int size
    );

    //카테고리로 검색
    @GET("v2/local/search/category.json")
    Call<CategoryResult> getSearchCategory(
            @Header("Authorization") String token,
            @Query("category_group_code") String category_group_code,
            @Query("x") String x,
            @Query("y") String y,
            @Query("radius") int radius
    );

    //장소이름으로 특정위치기준으로 검색
    @GET("v2/local/search/keyword.json")
    Call<CategoryResult> getSearchLocationDetail(
            @Header("Authorization") String token,
            @Query("query") String query,
            @Query("x") String x,
            @Query("y") String y,
            @Query("size") int size
    );

    //주소로 검색 (아직안쓰는중)
    @GET("v2/local/search/address.json")
    Call<AddressSearch> getSearchAddress(
            @Header("Authorization") String token,
            @Query("query") String query,
            @Query("size") int size
    );

}





[model]

CategoryResult

package com.mtjin.mapogreen.model.category_search;

import android.os.Parcel;
import android.os.Parcelable;

import com.google.gson.annotations.Expose;
import com.google.gson.annotations.SerializedName;

import java.util.ArrayList;
import java.util.List;

public class CategoryResult implements Parcelable {

    @SerializedName("meta")
    @Expose
    private Meta meta;
    @SerializedName("documents")
    @Expose
    private List<Document> documents = null;

    public Meta getMeta() {
        return meta;
    }

    public void setMeta(Meta meta) {
        this.meta = meta;
    }

    public List<Document> getDocuments() {
        return documents;
    }

    public void setDocuments(List<Document> documents) {
        this.documents = documents;
    }


    @Override
    public int describeContents() {
        return 0;
    }

    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeParcelable(this.meta, flags);
        dest.writeList(this.documents);
    }

    public CategoryResult() {
    }

    protected CategoryResult(Parcel in) {
        this.meta = in.readParcelable(Meta.class.getClassLoader());
        this.documents = new ArrayList<Document>();
        in.readList(this.documents, Document.class.getClassLoader());
    }

    public static final Parcelable.Creator<CategoryResult> CREATOR = new Parcelable.Creator<CategoryResult>() {
        @Override
        public CategoryResult createFromParcel(Parcel source) {
            return new CategoryResult(source);
        }

        @Override
        public CategoryResult[] newArray(int size) {
            return new CategoryResult[size];
        }
    };
}



Document

package com.mtjin.mapogreen.model.category_search;

import android.os.Parcel;
import android.os.Parcelable;

import com.google.gson.annotations.Expose;
import com.google.gson.annotations.SerializedName;

public class Document implements Parcelable {

    @SerializedName("place_name")
    @Expose
    private String placeName;
    @SerializedName("distance")
    @Expose
    private String distance;
    @SerializedName("place_url")
    @Expose
    private String placeUrl;
    @SerializedName("category_name")
    @Expose
    private String categoryName;
    @SerializedName("address_name")
    @Expose
    private String addressName;
    @SerializedName("road_address_name")
    @Expose
    private String roadAddressName;
    @SerializedName("id")
    @Expose
    private String id;
    @SerializedName("phone")
    @Expose
    private String phone;
    @SerializedName("category_group_code")
    @Expose
    private String categoryGroupCode;
    @SerializedName("category_group_name")
    @Expose
    private String categoryGroupName;
    @SerializedName("x")
    @Expose
    private String x;
    @SerializedName("y")
    @Expose
    private String y;

    public String getPlaceName() {
        return placeName;
    }

    public void setPlaceName(String placeName) {
        this.placeName = placeName;
    }

    public String getDistance() {
        return distance;
    }

    public void setDistance(String distance) {
        this.distance = distance;
    }

    public String getPlaceUrl() {
        return placeUrl;
    }

    public void setPlaceUrl(String placeUrl) {
        this.placeUrl = placeUrl;
    }

    public String getCategoryName() {
        return categoryName;
    }

    public void setCategoryName(String categoryName) {
        this.categoryName = categoryName;
    }

    public String getAddressName() {
        return addressName;
    }

    public void setAddressName(String addressName) {
        this.addressName = addressName;
    }

    public String getRoadAddressName() {
        return roadAddressName;
    }

    public void setRoadAddressName(String roadAddressName) {
        this.roadAddressName = roadAddressName;
    }

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getPhone() {
        return phone;
    }

    public void setPhone(String phone) {
        this.phone = phone;
    }

    public String getCategoryGroupCode() {
        return categoryGroupCode;
    }

    public void setCategoryGroupCode(String categoryGroupCode) {
        this.categoryGroupCode = categoryGroupCode;
    }

    public String getCategoryGroupName() {
        return categoryGroupName;
    }

    public void setCategoryGroupName(String categoryGroupName) {
        this.categoryGroupName = categoryGroupName;
    }

    public String getX() {
        return x;
    }

    public void setX(String x) {
        this.x = x;
    }

    public String getY() {
        return y;
    }

    public void setY(String y) {
        this.y = y;
    }


    @Override
    public int describeContents() {
        return 0;
    }

    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeString(this.placeName);
        dest.writeString(this.distance);
        dest.writeString(this.placeUrl);
        dest.writeString(this.categoryName);
        dest.writeString(this.addressName);
        dest.writeString(this.roadAddressName);
        dest.writeString(this.id);
        dest.writeString(this.phone);
        dest.writeString(this.categoryGroupCode);
        dest.writeString(this.categoryGroupName);
        dest.writeString(this.x);
        dest.writeString(this.y);
    }

    public Document() {
    }

    protected Document(Parcel in) {
        this.placeName = in.readString();
        this.distance = in.readString();
        this.placeUrl = in.readString();
        this.categoryName = in.readString();
        this.addressName = in.readString();
        this.roadAddressName = in.readString();
        this.id = in.readString();
        this.phone = in.readString();
        this.categoryGroupCode = in.readString();
        this.categoryGroupName = in.readString();
        this.x = in.readString();
        this.y = in.readString();
    }

    public static final Parcelable.Creator<Document> CREATOR = new Parcelable.Creator<Document>() {
        @Override
        public Document createFromParcel(Parcel source) {
            return new Document(source);
        }

        @Override
        public Document[] newArray(int size) {
            return new Document[size];
        }
    };
}





Meta

package com.mtjin.mapogreen.model.category_search;

import android.os.Parcel;
import android.os.Parcelable;

import com.google.gson.annotations.Expose;
import com.google.gson.annotations.SerializedName;

public class Meta implements Parcelable {

    @SerializedName("same_name")
    @Expose
    private SameName sameName;
    @SerializedName("pageable_count")
    @Expose
    private Integer pageableCount;
    @SerializedName("total_count")
    @Expose
    private Integer totalCount;
    @SerializedName("is_end")
    @Expose
    private Boolean isEnd;

    public SameName getSameName() {
        return sameName;
    }

    public void setSameName(SameName sameName) {
        this.sameName = sameName;
    }

    public Integer getPageableCount() {
        return pageableCount;
    }

    public void setPageableCount(Integer pageableCount) {
        this.pageableCount = pageableCount;
    }

    public Integer getTotalCount() {
        return totalCount;
    }

    public void setTotalCount(Integer totalCount) {
        this.totalCount = totalCount;
    }

    public Boolean getIsEnd() {
        return isEnd;
    }

    public void setIsEnd(Boolean isEnd) {
        this.isEnd = isEnd;
    }


    @Override
    public int describeContents() {
        return 0;
    }

    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeParcelable(this.sameName, flags);
        dest.writeValue(this.pageableCount);
        dest.writeValue(this.totalCount);
        dest.writeValue(this.isEnd);
    }

    public Meta() {
    }

    protected Meta(Parcel in) {
        this.sameName = in.readParcelable(SameName.class.getClassLoader());
        this.pageableCount = (Integer) in.readValue(Integer.class.getClassLoader());
        this.totalCount = (Integer) in.readValue(Integer.class.getClassLoader());
        this.isEnd = (Boolean) in.readValue(Boolean.class.getClassLoader());
    }

    public static final Creator<Meta> CREATOR = new Creator<Meta>() {
        @Override
        public Meta createFromParcel(Parcel source) {
            return new Meta(source);
        }

        @Override
        public Meta[] newArray(int size) {
            return new Meta[size];
        }
    };
}





SameName

package com.mtjin.mapogreen.model.category_search;

import android.os.Parcel;
import android.os.Parcelable;

import java.util.ArrayList;
import java.util.List;
import com.google.gson.annotations.Expose;
import com.google.gson.annotations.SerializedName;

public class SameName implements Parcelable {

    @SerializedName("region")
    @Expose
    private List<Object> region = null;
    @SerializedName("keyword")
    @Expose
    private String keyword;
    @SerializedName("selected_region")
    @Expose
    private String selectedRegion;

    public List<Object> getRegion() {
        return region;
    }

    public void setRegion(List<Object> region) {
        this.region = region;
    }

    public String getKeyword() {
        return keyword;
    }

    public void setKeyword(String keyword) {
        this.keyword = keyword;
    }

    public String getSelectedRegion() {
        return selectedRegion;
    }

    public void setSelectedRegion(String selectedRegion) {
        this.selectedRegion = selectedRegion;
    }


    @Override
    public int describeContents() {
        return 0;
    }

    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeList(this.region);
        dest.writeString(this.keyword);
        dest.writeString(this.selectedRegion);
    }

    public SameName() {
    }

    protected SameName(Parcel in) {
        this.region = new ArrayList<Object>();
        in.readList(this.region, Object.class.getClassLoader());
        this.keyword = in.readString();
        this.selectedRegion = in.readString();
    }

    public static final Creator<SameName> CREATOR = new Creator<SameName>() {
        @Override
        public SameName createFromParcel(Parcel source) {
            return new SameName(source);
        }

        @Override
        public SameName[] newArray(int size) {
            return new SameName[size];
        }
    };
}



CategoryResult.java
0.00MB
Document.java
0.00MB
Meta.java
0.00MB
SameName.java
0.00MB

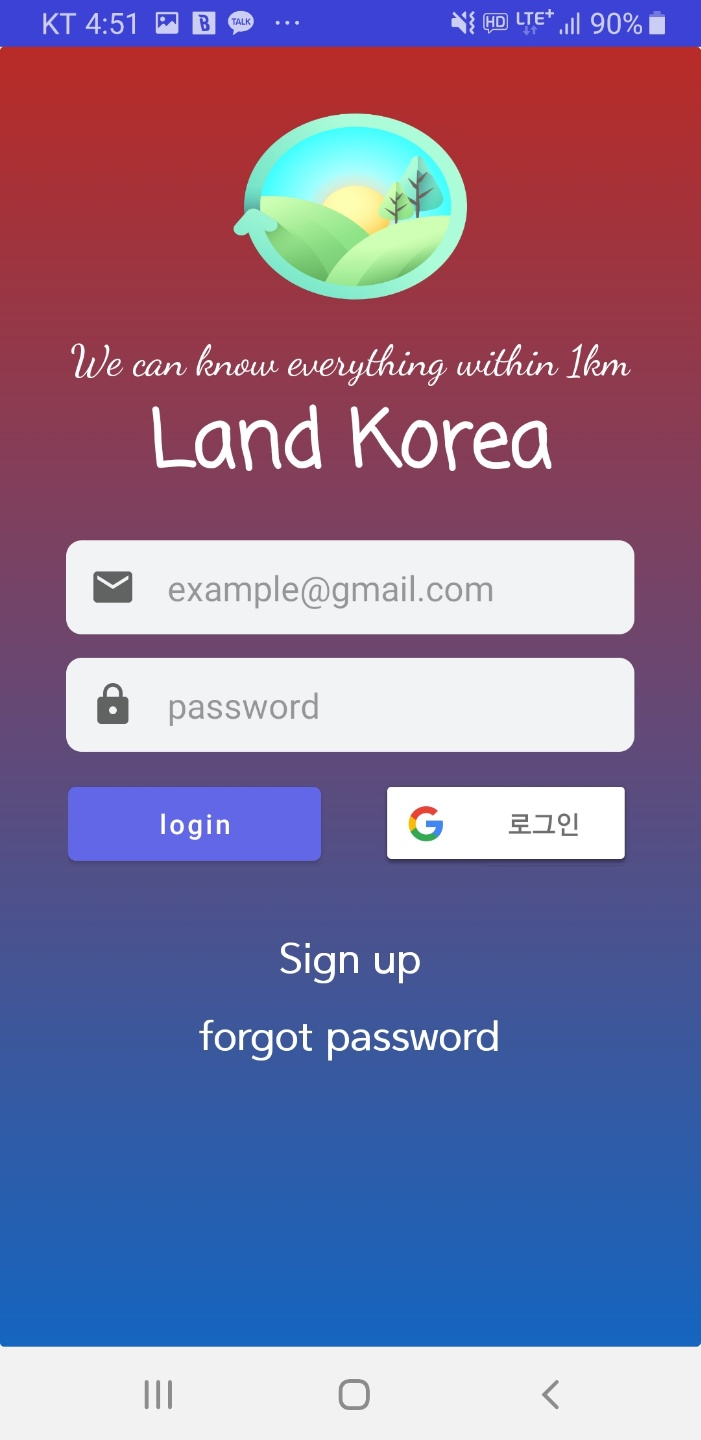

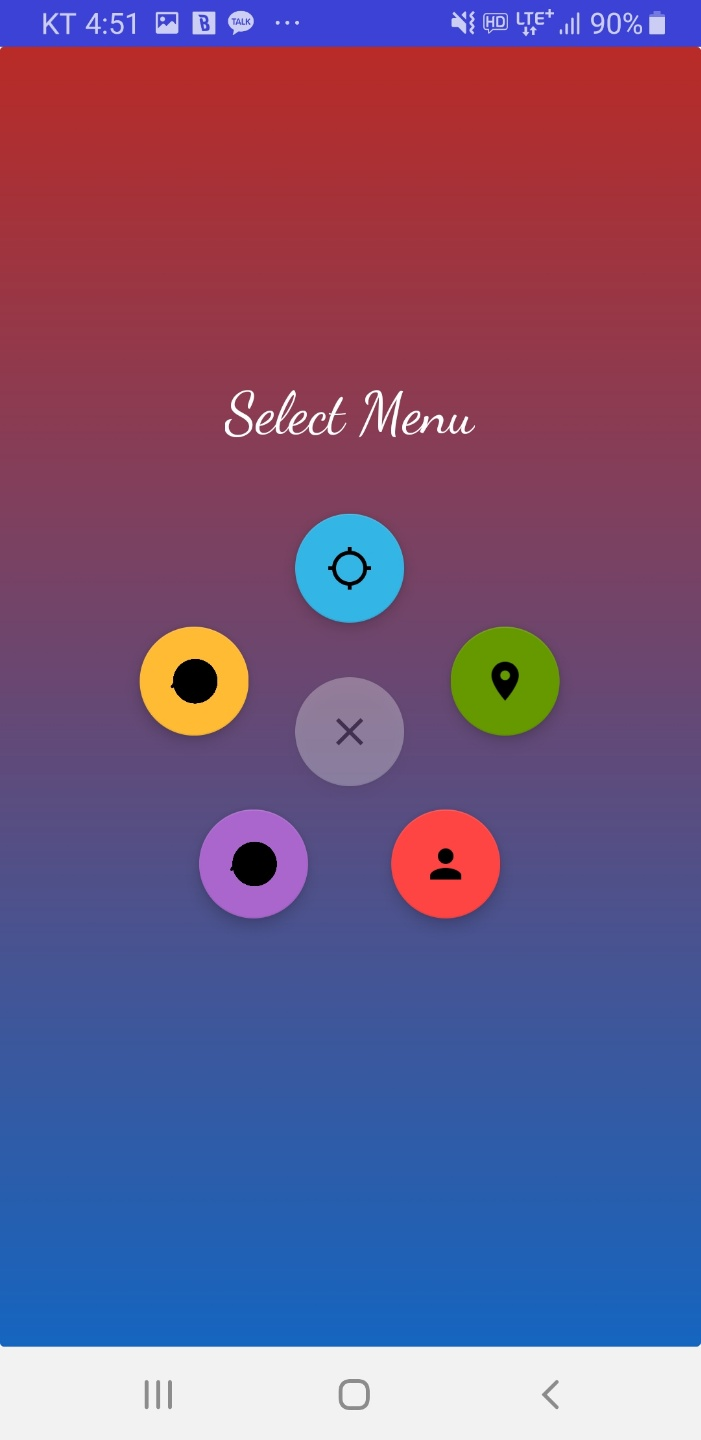

[인앱 사진]



























[포스팅 댓글에서 요청한 xml]

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".activities.MapActivity"
    >

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        >

        <LinearLayout
            android:layout_marginTop="4dp"
            android:layout_width="match_parent"
            android:layout_height="50dp"
            android:orientation="horizontal"
            >

            <EditText
                android:fontFamily="@font/binggraemelona"
                android:hint="검색할 장소를 입력 후 선택해주세요"
                android:id="@+id/map_et_search"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                />
        </LinearLayout>
        <androidx.recyclerview.widget.RecyclerView
            android:id="@+id/map_recyclerview"
            android:visibility="gone"
            android:layout_width="match_parent"
            android:layout_height="400dp"/>

        <RelativeLayout
            android:id="@+id/map_mv_mapcontainer"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            />
    </LinearLayout>

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab3"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_marginRight="15sp"
        android:layout_marginBottom="230dp"
        android:src="@drawable/ic_search_black_24dp"
        android:visibility="invisible"
        app:backgroundTint="#ffffff"
        app:elevation="6dp"
        app:pressedTranslationZ="12dp"
        />

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_marginRight="15sp"
        android:layout_marginBottom="160dp"
        android:src="@drawable/ic_current_location_seach_black_24dp"
        android:visibility="invisible"
        app:backgroundTint="#ffffff"
        app:elevation="6dp"
        app:pressedTranslationZ="12dp"
        />


    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_marginRight="15sp"
        android:layout_marginBottom="90dp"
        android:src="@drawable/ic_location_searching_black_24dp"
        android:visibility="invisible"
        app:backgroundTint="#ffffff"
        app:elevation="6dp"
        app:pressedTranslationZ="12dp"
        />

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|end"
        android:layout_margin="15sp"
        android:backgroundTint="@color/colorPrimary"
        android:src="@drawable/ic_add_black_24dp"
        />
    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab_detail"
        android:layout_width="wrap_content"
        android:visibility="gone"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|start"
        android:layout_margin="15sp"
        android:src="@drawable/ic_search_detail_mint_24dp"
        />

    <com.google.android.material.floatingactionbutton.FloatingActionButton
        android:id="@+id/fab_stop_tracking"
        android:layout_width="wrap_content"
        android:visibility="gone"
        android:layout_height="wrap_content"
        android:layout_gravity="bottom|start"
        android:layout_margin="15sp"
        android:src="@drawable/ic_stop_red_24dp"
        />

    <include
        layout="@layout/view_loader"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

</FrameLayout>



300x250
LIST
81 Comments
댓글쓰기 폼
